Pickup Coil and Magnet for Lehman Sensor
Last Updated: 6/11/17
These items are no longer in-stock

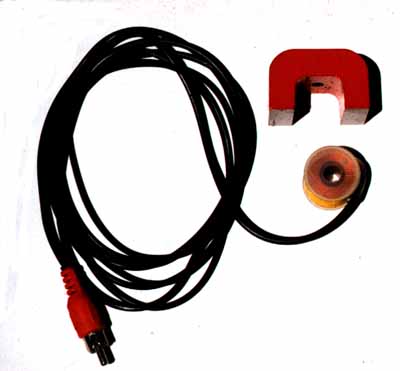

Pickup Coil:
The pickup coil is extracted from a new 220 VAC relay. We then add a 5 foot shielded audio
cable with a RCA plug at the end. At the coil end we solder the audio cable to the coil and then
hot glue the cable to the coil. This is done so that the very small wires out of the coil will
not break. The coil has over 10,000 turns and a DC resistance of around 9,000 ohms. The diameter
is 23 mm (15/16) and is 17 mm (11/16) wide.
Cost: Discontinued - You can make this item your self by removing the
coil from a 220VAC relay.
Magnet:
The magnet is rated at 22 lbs of pull. The dimensions of the magnet are: 25 mm (1 inch) high,
40 mm (1 9/16) wide. The open end of the magnet is 21 mm (13/16) wide. This gives approximately
2 mm (~1/16) on each side of 17 mm (11/16) wide coil when placed inside or near the edge of the
magnet. This magnet (you will need two of them) can also be used for damping.
Cost: Discontinued - You can purchase this item on eBay or at a local
hardware store
